Chrome Steel Balls for Car CV Joint Details
Chrome Steel Balls for Car CV Joint
The C.V joint balls we offer are AISI 52100 chrome steel balls which are used in the automotive industry as moving modules. Designed according to established industry standards, we supply C.V Joint Balls suitable for automotive rear axle shafts as axle assemblies. These C.V joint balls are also known as pivot balls and are used for complete movement of the shaft. Customers can avail of these C.V Joint Balls from us at the most competitive prices. For car assembly shaft parts C.V joint assembly size 17/32(13.494) from +1 to +12 9/16(14.288) from +1 to +12 14/60(14.60) from +1 to +12 above 19/32 (15.081) from +1+ to +12+
Material:
AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505/ GCr15.
Size:
From 10mm to 30mm
Package:
Plastic Bag + Cardboard Box + Wooden
Supply Ability:
300T/Month
Lead Time:
30 Days
What is chrome steel ball?

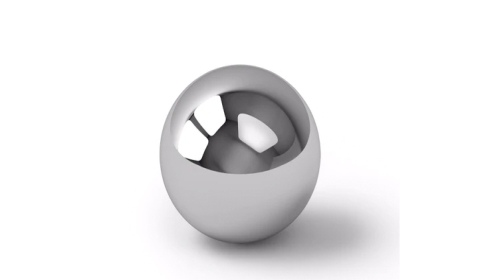

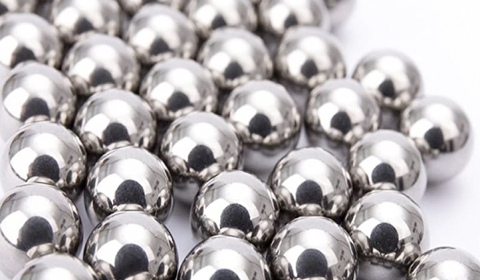

Chrome steel balls are finely made and polished AISI 52100 chrome steel balls made from chrome steel. Chrome steel is a bearing grade alloy steel. This material is known as 52100 steel in the US, 100Cr6 in Europe, SUJ2 in Japan and GCr15 in China. This fine-grain martensitic steel has high hardness, exceptional wear, surface characteristics and is exceptional for the creation of chrome steel balls. Chrome steel is an excellent material for balls used in various applications such as food grinding systems, vibratory finishing, linear motion components, and check valves.
Features of chrome steel ball for CV joints

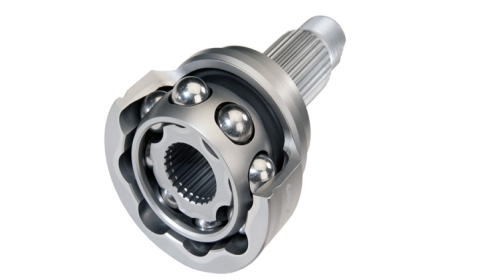

A constant velocity joint (also known as a CV joint) is a mechanical coupling that allows the shafts to rotate freely (without significantly increasing friction or reaction) as the angle between the two shafts moves within a certain range. rush). A chrome steel ball demonstrates high hardness, resistance to deformation, and excellent wear characteristics. The steel balls for CV joints made from chrome steel can be durable and smooth in the joints to decrease frictions. The chrome steel balls at JHSTEELBALLS are made in high quality and strict standard and earned reputations from worldwide.
Suppliers of chrome steel balls for CV joints
JHSTEESTEELBALLS provides customized made AISI 52100 steel balls for car CV joints and other rolling joints in market. If you are looking for car CV joint balls or chrome steel balls feel free to contact us for the latest price.
Bearing Steel Ball /Chrome steel ball
| Chemical Composition | ||||||
| C% | Si% | Mn% | Cr% | Cu% | S% | P% |
| 0.95∽1.10 | 0.15∽0.35 | 0.25∽0.50 | 1.30∽1.60 | 0.3Max | 0.3Max | 0.3Max |
| Material | 100Cr6 / aisi 52100 / Gcr15 / SUJ2 bearing steel |
| Grade | G5-g1000 |
| Size | 0.5mm-120mm |
| Hardness | HRC 58-62 |
| Features | ferritic steel, excellent surface finish, high hardness and high load carrying capacity, anti-abrasive |
| Application | high-speed low-noise bearing, ball screw, linear motion guide, bicycle / auto parts, chemical and food processing, caster wheel, power plant, grinding media. |
